8. Labels

The Labels panel extracts label text from point and line layers, assigns those labels to hexes, previews the result, and can export both a QGIS label layer and engine-oriented YAML output.

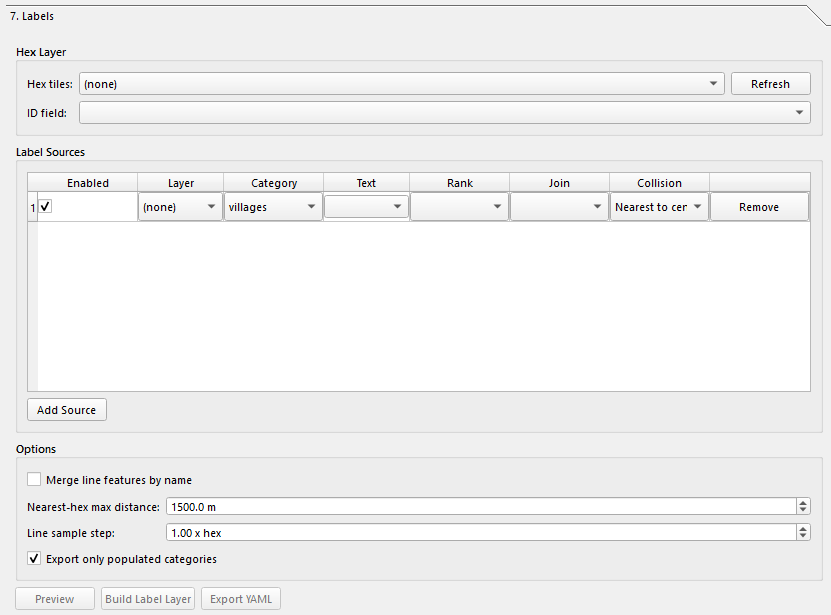

Panel layout

The panel contains:

  • Hex Layer
  • Label Sources
  • Options
  • Action buttons for Preview, Build Label Layer, and Export YAML
  • Preview & Output

Hex Layer

Choose:

Control What it does
Hex tiles The polygon hex layer the labels will be assigned to.
ID field The field used as the hex identifier. The code prefers hex_id when available.
Refresh Reloads available polygon layers and their fields.

The selected hex layer must be polygon geometry and must contain a valid ID field.

Label Sources

Click Add Source to add one label-source row. Each row contains:

Column What it does
Enabled Includes or excludes the source row.
Layer Source vector layer.
Category Output category used in previews and YAML export.
Text Label text field, or an expression.
Rank Optional rank field used for sorting/prioritizing labels.
Join Join method used to assign labels to hexes.
Collision Collision handling policy.
Remove Deletes the row.

Text source

The Text column can use:

  • A source field such as name
  • <expression> to enter a QGIS expression manually

Join modes

The available join choices depend on geometry type:

  • Point layers use point-oriented join modes
  • Line layers use line-oriented join modes

The old docs’ simplified “point-in-hex or nearest-hex” wording no longer fully describes the live UI.

Categories

The category list is still engine-oriented and includes values such as:

  • villages
  • cities
  • highways
  • major_roads
  • minor_roads
  • rail_roads
  • rivers
  • ponds
  • terrain_features
  • streams
  • minor_streams
  • airstrips
  • zones
  • custom

Options

Option What it does
Merge line features by name Merges line features with the same name before output.
Nearest-hex max distance Maximum distance for nearest-hex assignment.
Line sample step Sampling distance expressed as x hex.
Export only populated categories When enabled, YAML export skips empty categories.

The current UI defaults Export only populated categories to enabled.

Actions

Button What it does
Preview Runs the label build logic and shows a report in the preview pane without writing files.
Build Label Layer Writes a QGIS label output layer to disk and adds it to the project.
Export YAML Writes YAML output for downstream engine use.

Preview & Output

The bottom panel contains:

Control What it does
Preview text box Shows the preview/build report.
Export path Displays the current YAML export path.
Open Output Folder Opens the export folder in the file explorer.
Copy Debug Log Copies the label debug log to the clipboard.

Output behavior

The current code produces two different outputs:

  • A label vector layer when you use Build Label Layer
  • A YAML export when you use Export YAML

The previous doc only described a single export flow, which is no longer accurate.

Notes

  • The buttons are enabled only when a valid hex layer is selected and at least one enabled source row is configured.
  • The labels code expects a usable hex ID field; hex_id is the preferred name.
  • The output folder is tied to the project/export paths used by the plugin.
