Appendix A. Example Project

This manual comes with an example project, which can be used to start your own. The example project also allows you to see in more detail how the example map described in this manual has been created.

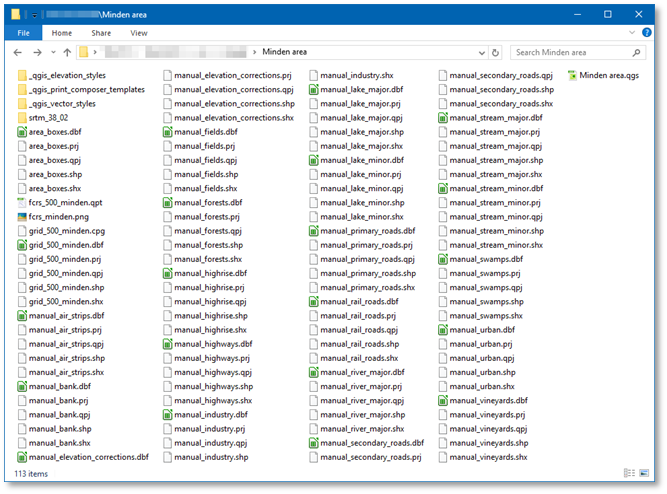

Figure 86    The “Minden area” QGis project folder, with the project file top left

The project folder contains:

  • A single project file (Minden area.qgs),

  • A single print composer (fcrs_500_minden.qpt),

  • A folder with elevation data (srtm_38_02),

  • A folder with styles for the elevation layer (_qgis_elevation_styles),

  • A folder with styles for the vector layers (_qgis_vector_styles),

  • A folder with a 20x15km (46x30 hex) print composer template (_qgis_print_composer_templates),

  • Per vector layer, five files together containing the vector data in shapefile format for the layer

Figure 87    The elevation styles to style a raster layer with FC's fifteen elevation colors

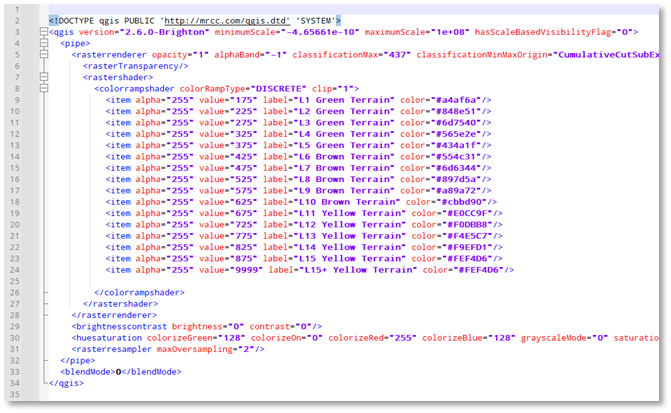

Figure 88    Elevation style file contents (for elevation 175m and up, in steps of 50m)
